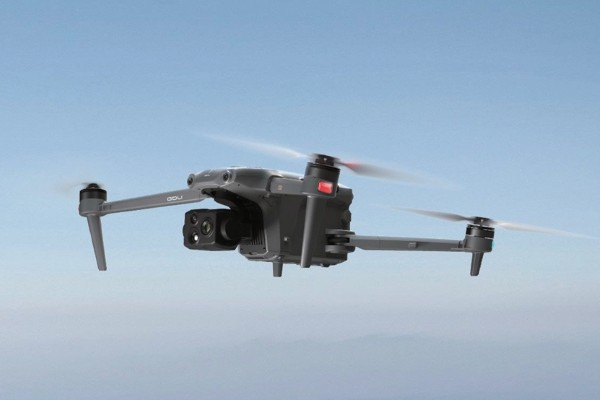

GUD-S200 Industrial Drone for Inspection & Emergency Response
The S200 drone is designed for versatile applications across smart city management, environmental conservation, energy infrastructure inspection, event security, emergency response, and industrial surveying. Its powerful imaging and AI capabilities enable safe, efficient, and intelligent operations in complex environments.
drone S200 Series
Engineered for high-performance aerial operations, the S200 series drones combine a compact, streamlined frame with exceptional flight endurance and adaptability. Equipped with a powerful propulsion system and an industry-leading 8-core AI processor delivering up to 21 TOPS of computing power, the S200 excels in real-time visual recognition and supports intelligent edge-cloud coordination for efficient, automated workflows.
Designed for versatility, the platform supports a broad range of industry-grade payloads, making it ideal for applications across energy, infrastructure, agriculture, and emergency response. Despite its lightweight and portable design, the S200 delivers professional-grade capabilities in every mission.
Key Features
Resilient to Interference
Safe Return-to-Home
When both satellite signals and data links are disrupted, the drone uses a visual positioning fusion navigation algorithm and dynamic frequency-hopping image transmission to maintain safe operation and ensure reliable return-to-home functionality.
AI Obstacle Avoidance
Precision Flight Safety
Equipped with six-directional binocular sensors and AI-powered obstacle avoidance, the drone can accurately detect small and complex obstacles to ensure safe and stable flight.
5G Connectivity
4K Live Streaming
With 5G transmission, the drone supports ultra-clear 4K live streaming even in high-interference environments. It enables real-time visibility and remote control, offering uninterrupted operation for traffic management, security patrols, emergency response, and logistics.
10× Optical Zoom
Instant Autofocus
The 48MP wide-angle and zoom visible-light camera supports 10× continuous lossless optical zoom and up to 160× hybrid zoom. With 60ms PDAF (Phase Detection Autofocus), it delivers crisp, clear imaging at any distance, enabling fast target acquisition.
3-Axis Gimbal with EIS Stabilization
Combining a 3-axis mechanical gimbal with Electronic Image Stabilization (EIS), the system ensures smooth and stable footage even during high-magnification zoom operations beyond 6×.
1K Infrared Imaging
Enhanced Detail
Featuring 1K thermal imaging, 2K AI-enhanced photo capture, and up to 32× AI super-resolution zoom, the system intelligently improves image clarity, capturing fine details in challenging conditions.
S200 Series Drone Specifications
| Specification | S200 Drone (Dual-Sensor) |
S220 Drone (Triple-Sensor) |
S220 PRO Drone (640 Infrared Quad-Sensor) |
S220 PRO Drone (1K Infrared Quad-Sensor) |
|---|---|---|---|---|
| Folded Dimensions | 175 × 272 × 130 mm | 175 × 272 × 130 mm | 175 × 272 × 148 mm | 175 × 272 × 148 mm |
| Unfolded Dimensions | 613 × 699 × 133 mm | 613 × 699 × 133 mm | 613 × 699 × 160 mm | 613 × 699 × 160 mm |
| Wheelbase | 486 mm | 486 mm | 486 mm | 486 mm |
| Weight | 1750 g | 1750 g | 1860 g | 1860 g |
| Max Takeoff Weight | 2050 g | 2050 g | 2050 g | 2050 g |
| Max Flight Time | 45 min | 45 min | 41 min | 41 min |
| Max Ascent / Descent Speed | 8 m/s / 6 m/s | 8 m/s / 6 m/s | 8 m/s / 6 m/s | 8 m/s / 6 m/s |
| Max Wind Resistance | 12 m/s | 12 m/s | 12 m/s | 12 m/s |
| Max Takeoff Altitude | 6000 m | 6000 m | 6000 m | 6000 m |
| Max Transmission Range | 15 km (FCC) | 15 km (FCC) | 15 km (FCC) | 15 km (FCC) |
| Wide-Angle Visible Camera | 48 MP | 48 MP | 48 MP | 48 MP |
| Telephoto Visible Camera | 48 MP | 48 MP | 48 MP | 48 MP |
| Infrared Camera | N/A | 640 × 512 @ 30 fps | 640 × 512 @ 30 fps | 1280 × 1024 @ 30 fps |
| Laser Rangefinder | N/A | N/A | 10 – 1500 m | 10 – 1500 m |
