Solar-Powered Drone Hub

Unmached superiority – first solar drone hub for UHV power towers

Smart Drone Hubs: Full Autonomous Inspection

EFLY’s drone hub, developed since 2012 with numerous patents and full IP ownership, includes integrated software. Despite competitors’ attempts to replicate, our continuous R&D and production based ensure lasting industry leadership.

Key Specs:

5km drone inspection radius
25min charge → 1h flight
24/7 readiness & operations
365days battery replacement

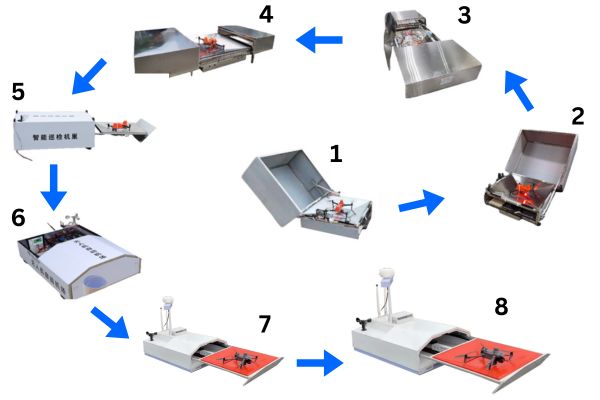

EFLYs Drone Hub Generations:

(Reverse Chronological Order)

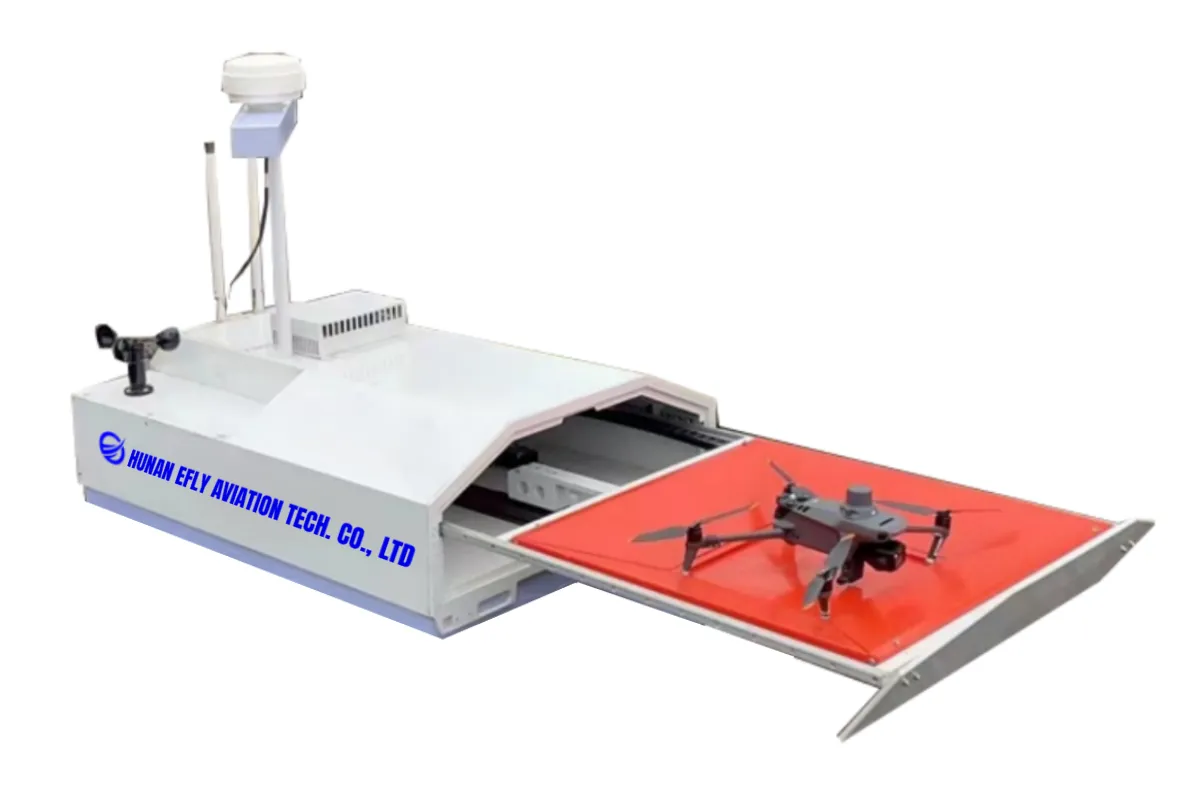

8th: Sun-powered Drone Hub supports DJI Mavic 4
7th: Sun-powered Drone Hub supports DJI Mavic 3
6th: Side-sliding Drone station supports DJI Mavic 3
5th: Side-sliding AUREL Drone Hub
4th Generation (Variant): Side-sliding Rectangular Drone Base
4th: Slide-frame Drone Hub
3rd: Slide-top Stainless Steel Drone Port
2nd: Flip-top Stainless Steel Drone Nest
1st: Flip-top Aluminum Alloy Drone Hub

Why EFLY Drone Hub stands out？

It features exclusive patents and is the only mount on ultra-high-voltage tower drone hub, that is lightweight, compact, and rapidly deployable. It meets diverse inspection needs and outperforms competitors in safety, reliability, and adaptability. It can even transform pickups into mobile hubs. No faults record in power grid inspections for ten years.

EFLY drone hub expandable high-capacity graphene lead-acid batteries (1kWh/20kg per unit)
Low Power consumption: Complies with carbon neutrality policies

Standby: 30W
Average: 150W
Peak: 300W

EFLY drone hub installs anywhere:

Ground (no leveling required)
Power towers (2-3m height)
Rooftops, poles, substations
Rapid setup: 2-person portable, 3-person deployable

Flexible Power Supply: Grid power, energy storage systems, solar panels
All-aluminum construction withstands harsh environments – coastal, urban, mountainous, desert & plateau regions, 6years lifespan min.
Intelligent BMS management system
Multiple operation modes supported

EFLY’s Drone Hub owns Superior Compatibility

Supports major drone models: DJI Mavic 3 & others.
API/SDK for extended development
MQTT/HTTP protocol integration
Third-party platform connectivity
Full data support: Video & image transmission

Military-Grade Safety

Redundant takeoff/landing safeguards
Backup landing points & altitude settings
Smart failsafes: Low-power return, vision landing
Multi-sensor environmental detection
Secure energy storage system
Industrial-grade data encryption
Dedicated RTK base station

Dual Communication Channels

Mission Side: Real-time drone inspection coordination
Management Side: Centralized remote control platform

Specification

Content	Detailed Specifications and Functions
Dimensions	Length 1040mm, Width 750mm, Height 400mm
Weight	35KG
Charging Method	Contact charging
Power Consumption	Maximum 220W, Standby 10W
Input Voltage	DC24V
Operating Temperature	-20℃ to 60℃.
Environmental Monitoring	Temperature, humidity, rainfall, wind speed
Network	4G/5G/Wi-Fi/Fiber/WAPI
Protection Rating	IP56
Fan	Automatic cooling
Air Conditioning	Semiconductor air conditioning
Heater	Heating device

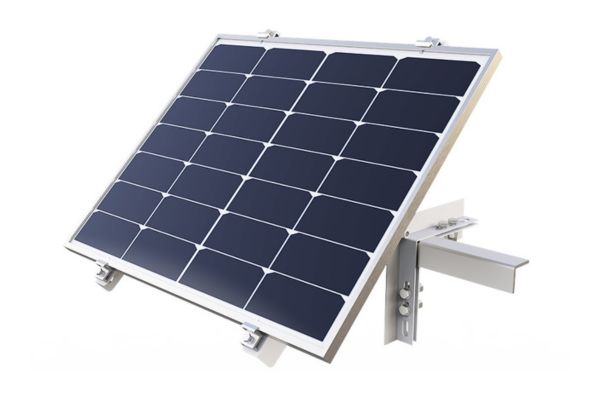

Power Supply System	800W solar panel + 24V/70A energy storage battery (supports 32-hour standby)
Optional Independent Power System	Each additional 12V/20A battery unit requires a 200W solar panel

Function

One-click Takeoff	Automatically opens the drawer upon task reception, powers on the drone battery, and after successful self-check, the drone takes off from the hub and flies to an approximate altitude of 6 meters.
Task Reception	Automatically receives inspection tasks dispatched from the control terminal.
Execute/Pause/End Task	The drone follows the planned flight path or executes/pauses/ends the task according to commands.
One-click Return	The drone returns to the home position from any location, automatically opens the drawer, lands on the nest, starts the charging program, and automatically closes the drawer.
One-click Landing	Causes the drone to land immediately at the current location.
Automatic Charging	Automatically returns to the charging station after landing, and automatically powers off the battery after charging is complete.
Photo/Video Recording	Takes photos/records video from the drone's cloud platform.
Query/Control Cloud Platform Angle	Queries/controls the drone's cloud platform angle.
Data Auto-Upload	Uploads the image data captured by the drone to the server.
Real-Time Image Transmission	Allows direct viewing of the drone's real-time image transmission on the control terminal.
Fault Self-Check	Performs self-check on faults and reports to the system.
